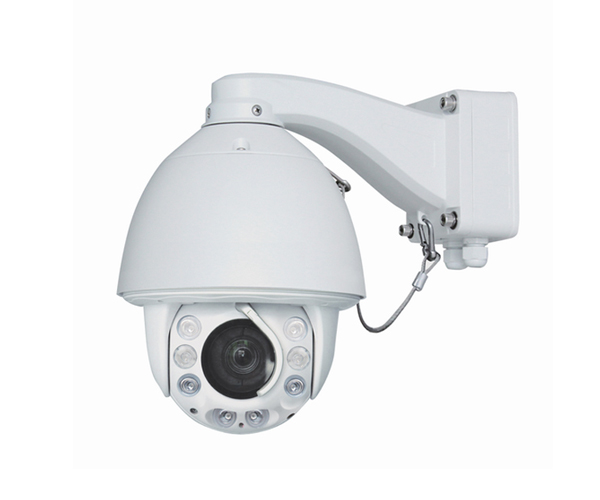

YC-HDT100IR
Products
YC-HDT200IR
2 megapixels infrared HD IP high-speed intelligent dome camera (TI)
◎ Using1/2.8'' Sony Ultra low illumination sensor, standard H.264,1080P image quality.
◎ TI technical solution; ONVIF protocol supported.
◎ Using integrated array IR led with multiple angles, has uniformity image brightness, IR distance: 120meters.
◎ Light source constant current driving, the life span is 10 times longer than ordinary led.
◎ Multistream supported, digital video encrpytion tachniques.
◎ WEB server inserted, supports WEB reviewing and management.
◎ 3A self-control technology, BLC, lower illumination, (color/BW), auto/manual transfer function.
◎ Auto-iris, auto zooming, auto white balance, BLC, lower illumination, (color/BW), auto/manual transfer function.
◎ Horizontal velocity:300°/sec, horizontal continuous rotation:360°, No monitoring blind area, vertical: 0°-90°.
◎ Data backup when power failure occurred.
◎ Using aluminum alloy housing, good heat dissipation effects, dust prevention and water-proof function.
◎ Precision stepper motor driving. Stable operation, Sensitive reaction.
◎ Power supply inbuilt in the wall bracket, Easy for construction maintenance.
◎ Using lightning protection, waterproof, anti-fog, anti-obscure, anti-shock, anti-surging.
◎ Using1/2.8'' Sony Ultra low illumination sensor, standard H.264,1080P image quality.
◎ TI technical solution; ONVIF protocol supported.
◎ Using integrated array IR led with multiple angles, has uniformity image brightness, IR distance: 120meters.
◎ Light source constant current driving, the life span is 10 times longer than ordinary led.
◎ Multistream supported, digital video encrpytion tachniques.
◎ WEB server inserted, supports WEB reviewing and management.
◎ 3A self-control technology, BLC, lower illumination, (color/BW), auto/manual transfer function.
◎ Auto-iris, auto zooming, auto white balance, BLC, lower illumination, (color/BW), auto/manual transfer function.
◎ Horizontal velocity:300°/sec, horizontal continuous rotation:360°, No monitoring blind area, vertical: 0°-90°.
◎ Data backup when power failure occurred.
◎ Using aluminum alloy housing, good heat dissipation effects, dust prevention and water-proof function.
◎ Precision stepper motor driving. Stable operation, Sensitive reaction.
◎ Power supply inbuilt in the wall bracket, Easy for construction maintenance.
◎ Using lightning protection, waterproof, anti-fog, anti-obscure, anti-shock, anti-surging.
SPECIFICATION
Model |
YC-HDT200IR |
Sensor |
1/2.8'' Sony Ultra low illumination sensor |
Effective pixels |
1920(H)×1280(V) |
Min Illumination |
0Lux/F1.6(IR on) |
IR distance |
80-120m |
3A AUTO |
auto-iris,auto-focus,auto white balance |
WDR |
multilevel WDR adjustable |
AGC |
Auto/manual |
SNR |
>>50dB |
BLC |
ON / OFF |
ES |
1/25~1/100,000s |
D/N mode |
optical filter color to black |
Focus Mode |
auto/semi-auto/manual |
lENS |
|
FOCUS |
4.7-94mm ，20 times zoom |
ZOOM SPEED |
2.7 sec(optics, wide angle- telescoping) |
horizontal view angle |
55.2°-3.2°(optics, wide angle- telescoping) |
stop number |
F1.6-F3.0 |
Function |
|
Rotation angle |
horizontal:360°continuous rotation, vertical: -10°—90°,auto flip |
horizontal speed |
horizontal：0°-300°/S，horizontal preset：300°/s |
vertical speed |
vertical keyboard speed：0-120°/s， vertical speed preset speed：120°/s |
zoom ratio |
supports |
preset |
256 sets， Chinese language title adjustable |
Auto scanning |
8set, left-right boundary adjustable, scanning speed adjustable. |
automatic cruise |
8 set,79 presets/set, Time interval adjustable |
Syn Scanning |
4 set |
Guard function |
Automatic call presets when its unused |
alarm function |
motion detection, client-side alarm, External access alarm |
Online Upgrade |
supports |
Network |
|
Network interface |
10M/100M，RJ45 port |
Maximum image size |
1920(H)×1080(V) |
Frame |
25/30fps |
Image compression |
H.264 |
video compression |
G.711 |
network protocol |
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP,ONVIF |
dual-stream |
supports |
user permission |
Multistage |
safe mode |
password protection, Multiple user access control |
client-side |
|
Camera control |
horizontal/vertical, zoom, focus, mouse tracking mode,Iris,preset model |
time display |
multi display modes |
Alarm |
|
alarm input and output |
customized |
alarm Linkage |
preset, Trigger switch output,client E-map |
Input and output |
|
audio input |
audio input(opti, onal) |
audio output |
linear level, impedance: 600Ω（optional） |
General specifications |
|
PTZ Control protocol |
inbuilt multi control protocol, bits rate:2400/4800/9600/19200bps |
menu |
Chinese, English |
power supply |
DC12V±10% |
power consumption |
Around 45W |
Operating Temp/Hum |
-35℃-+55℃,90%RH |
level of protection |
IP66（outdoor camera），TVS 4000V lightning protection、ANTI Surging |
installation |
1. Indoor and outdoor wall mount.2. Indoor and outdoor ceiling mount |
