YC-W964AHZ37DA
Products
YC-W964AHZ37DA

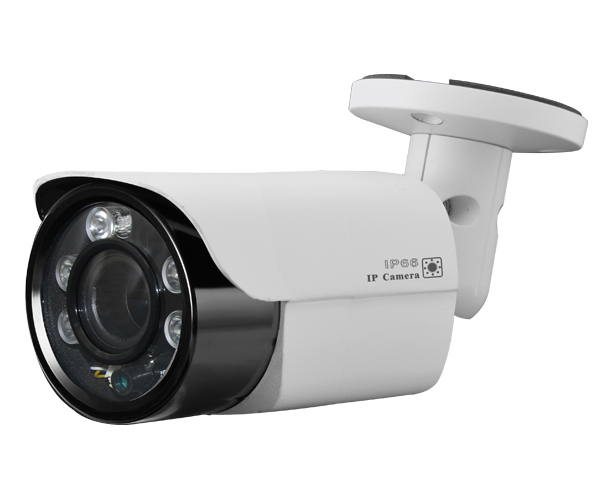

5.0megapixel HD network waterproof IR CCTV camera
◎ 1/3" OV4689 OmniBSI-2 CMOS sensor
◎ Low illumination 0.1Lux
◎ Day/Night (ICR), AWB, AGC, WDR, 2D/3D-DNR, IR-CUT
◎ D-WDR, Motion Detection, Privacy Mask, Mirror
◎ RTSP and Onvif 2.4 compatible
◎ H.265/H.264 dual-stream media server, Max.5MP HD output
◎ Ultra low bitrate and high image quality
◎ Easy-to-use P2P Cloud service
◎ Multi web browser, PC Client, mobile APP remote access
◎ Optional customization Lens/Audio/POE, etc.
◎ Lightning protection 4000V
◎ Strong water-proof housing, IP66
◎ Array IR Led and small Led optional
◎ Fixed and VF lens optional
◎ 1/3" OV4689 OmniBSI-2 CMOS sensor
◎ Low illumination 0.1Lux
◎ Day/Night (ICR), AWB, AGC, WDR, 2D/3D-DNR, IR-CUT
◎ D-WDR, Motion Detection, Privacy Mask, Mirror
◎ RTSP and Onvif 2.4 compatible
◎ H.265/H.264 dual-stream media server, Max.5MP HD output
◎ Ultra low bitrate and high image quality
◎ Easy-to-use P2P Cloud service
◎ Multi web browser, PC Client, mobile APP remote access
◎ Optional customization Lens/Audio/POE, etc.
◎ Lightning protection 4000V
◎ Strong water-proof housing, IP66
◎ Array IR Led and small Led optional
◎ Fixed and VF lens optional
SPECIFICATION
| Model | YC-W964AHZ37DA | |
| Camera | ||
| Image Sensor | 1/3" OV4689 CMOS | |
| Effective Pixels | 2688(H)×1520 (V) | |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s | |
| Min. Illumination | 0.1Lux@F1.2(AGC ON), 0Lux IR on | |
| Day/Night | Auto/Color/(B/W)/Timing | |
| WDR | Digital WDR | |
| White Balance | Auto | |
| Other | AGC,2/3 DNR,Motion Detection, Privacy Mask, Mirror, Flip | |
| Encode | ||
| Embedded Solution | Hi3516D | |
| Video Standard | H.265/H.264 | |
| Video Resolution | H265MainStream:15fps@5MP(2592x1944),25fps@4MP(2592x1520),30fps@3MP/1080P/720P | |
| Sub stream: VGA(640x480)/360P/QVGA@25fps | ||
| Video Bitrates | 512Kbps - 6Mbps, VBR/CBR | |
| Audio Standard | G.711-u | |
| IR Led | ||
| IR Led | 5pcs Array IR LEDs | |
| IR Distance | 15-20m | |
| Lens | ||
| Focal length | Fixed or VF lens | |
| Lens | 3.6/6mm | |
| Optional Function | ||
| POE, Audio, Alarm In/Out, SD card, etc. | ||
| Network Services | ||
| Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP | |
| P2P | Yes | |
| Web | IE , firefox, etc. | |
| Media | CMS, Android, IOS | |
| ONVIF | 2.4 compatible | |
| General | ||
| Network Port | 1-RJ45, 100Mbps, POE optional | |
| Power Supply | 12 VDC ± 10% | |
| Power Consumption | < 5 W | |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH | |
| Dimension | 186*64.7*83.6mm | |
| Weight | 0.45Kg | |
